ES5075-008-3000A AL
| ES5075-008 series- BIL75kV 3000A AL epoxy bushing | ||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rated voltage: 5 kV, BIL 75kV;

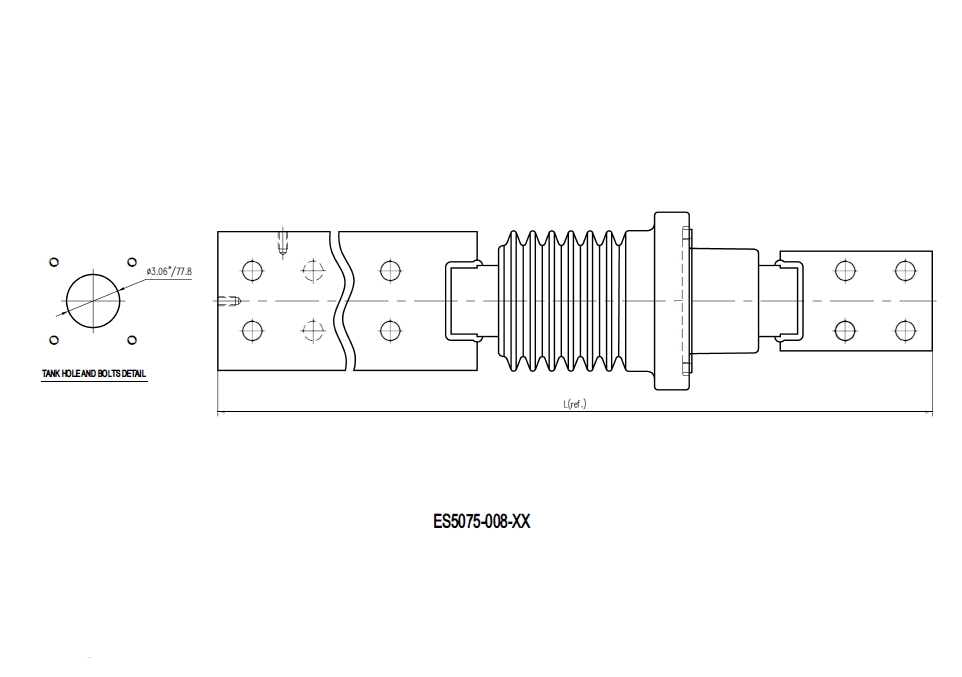

Current rating: 3000A Stud and spade material: aluminum alloy, Tin-plated; Clamp: Aluminum alloy; Insulation body: High performance epoxy system, Color: gray; Operation temperature: -40~130°C, Special treatment on interface of the stud and insulation body, to ensure bushing’s working life: >20 years, with no leak; On customer’s request, it can be indoor type or out-door type. Strike distance: >100mm; Creep distance >215mm; Tank hole diameter: 77.8mm (3.06″) Inner spade can be designed 90° rotation on customer’s request. |
||||||||||||||||||||||||||||||||||||||||||||||||||||
 |
||||||||||||||||||||||||||||||||||||||||||||||||||||
ES5075 series 3000A AL epoxy bushing
|
||||||||||||||||||||||||||||||||||||||||||||||||||||
