Assemblies for Chinese Market

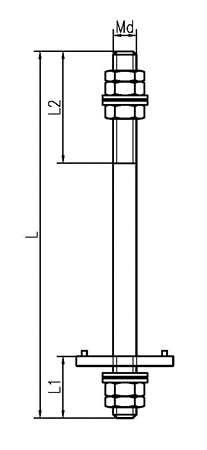

TYPE A TYPE B

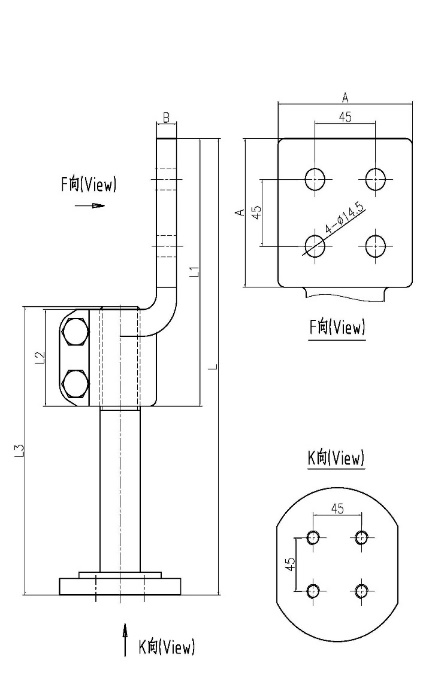

TYPE C TYPE D
| PN | Current A | Md | TYPE | L | L1 | L2 | L3 | A | B |
| BF1-300 | 300 | 12 | A | 185 | 32 | 58 | 185 | ||
| BF1-400 | 400 | 16 | A | 185 | 32 | 58 | 185 | ||
| BF1-630 | 630 | 20 | A | 230 | 38 | 80 | 230 | ||
| BF1-630 | 630 | 20 | B | 230 | 38 | 80 | 230 | 8 | |
| BF1-800 | 800 | 24 | B | 275 | 38 | 100 | 275 | 12 | |
| BF1-800 | 800 | 24 | C | 363 | 150 | 60 | 275 | 80 | 12 |
| BF1-1000 | 1000 | 30 | C | 363 | 150 | 60 | 275 | 80 | 12 |
| BF1-1250 | 1250 | 33 | C | 373 | 150 | 60 | 285 | 80 | 12 |
| BF1-2000 | 2000 | 42 | D | 388 | 180 | 60 | 255 | 100 | 15 |
| BF1-3150 | 3150 | 48 | D | 388 | 195 | 75 | 255 | 100 | 18 |
