ES5075-003-2200A CU

ES5075-003 series- BIL75kV 2200A CU epoxy bushing

Rated voltage: 5 kV, BIL 75kV;

Current rating: 2200A

Stud and spade material: copper C11000. soldering, Tin-plated;

Clamp: Aluminum alloy;

Insulation body: High performance epoxy system, Color: gray;

Operation temperature: -40~130°C,

Special treatment on interface of the stud and insulation body, to ensure bushing’s working life: >20 years, with no leak;

On customer’s request, it can be indoor type or out-door type.

Strike distance: >100mm;

Creep distance >215mm;

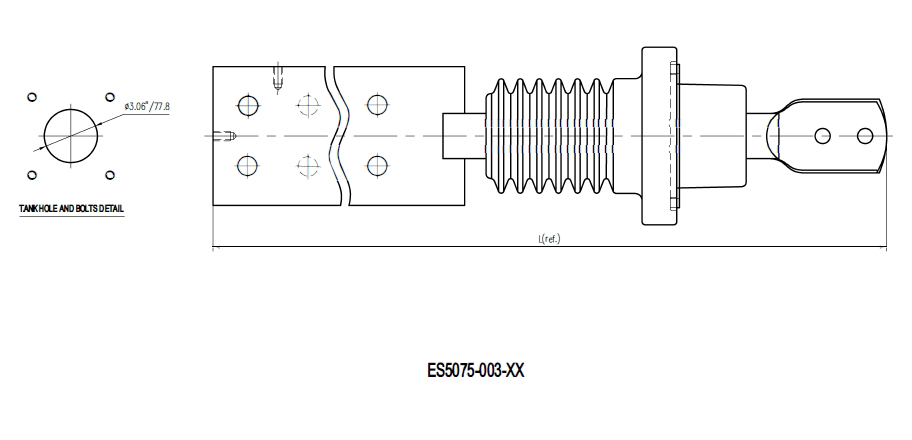

Tank hole diameter: 77.8mm (3.06″)

Inner spade can be designed 90° rotation on customer’s request.
