Nuts and Gaskets

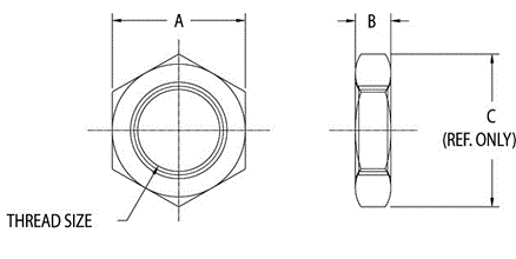

| ITEM | THREAD | DIM A | DIM B | DIM C | MATERIAL |
| 1 | 1/4”-20 | 0.438” | 0.18”/ 0.22” | 0.50” | C35300 |
| 2 | 3/8”-16 | 0.55” | 0.32” | 0.63” | C35300 |
| 3 | 1/2”-13 | 0.75” | 0.25”/0.38” | 0.855” | C35300 |
| 4 | 5/8”-11 | 0.938” | 0.25”/0.38” | 1.06” | C35300 |
| 5 | 3/4”-16 | 1.125” | 0.32”/0.43” | 1.27” | C35300 |
| 6 | 1.0”-14 | 1.50” | 0.38”/0.50” | 1.73” | C35300 |
| 7 | 1.25”-12 | 2.00” | 0.38”/0.50” | 2.30” | C35300 |
| 8 | 1.50”-12 | 2.625” | 0.56” | 3.02” | C35300 |
| 9 | 2.0”-12 | 3.00” | 0.56” | 3.46” | C35300 |
